Handheld Wire Tension Meter, 4-5000 cN Digital Yarn Tensionmeter with 3 Modes and 6 Units, Thickness Adjustment, 41 Data Storage, for Yarns Fibers Wires Optical Fibe 5000cN

Features:1. Three Working Mode: Real-time Mode, Hold Mode and Peak Mode. 2. 6 Measurement Units: cN, gf, oz, kgf, N, lb.3. Accuracy is 2.5% of full scale.4. It can measure the tension of 10 different materials accurately.5. Has thickness adjustment function.6. Easy to store, can store 41 group data.7. Supports USB data transferSpecifications :Product Name: Handheld Digital Wire Tension MeterProduct Model: 200cN(2N) / 500cN(5N) / 1000cN(10N) / 2000cN(20N) / 2500cN(25N) / 5000cN (50N)Tension Range: 4~5000 cNMeasuring head width (mm): 65/116Calibration material textile PA monofilament: φ 0.12mm-1.20mmSize (mm):270*118*55Net weight (g):About 640gBattery: 3.7VPacking List : 1 X Wire Tension Meter SetDescription:Depending on the model, the width of the lead frame and the distance between the outside of the two guide wheels are also different.Our calibration materials are suitable for 95% tension measurement. PA=Polyamide monofilament. If the diameter, hardness and shape of the material to be tested are significantly different from the calibration materials of us, it is recommended that the customer provide 5 meters of the tested material for calibration.

• 【Handheld Digital Wire Tension Meter】This wire tension meter is a precision instrument designed specifically for measuring the tension (pulling force) of linear and filamentous materials—such as fibers, steel wires, and electric wires—during production, processing, or operation. It is widely used for quality control and process monitoring in industries including wire & cable, metal wire, and textile.
• 【3 Modes & Thickness Adjustment】The wire tension meter supports three switchable working modes: Real-time, Hold, and Peak. The thickness adjuster prevents reading errors caused by variations in material diameter. With a measurement precision of up to 0.01mm, it easily adapts to various testing requirements, enhancing the efficiency of professionals.

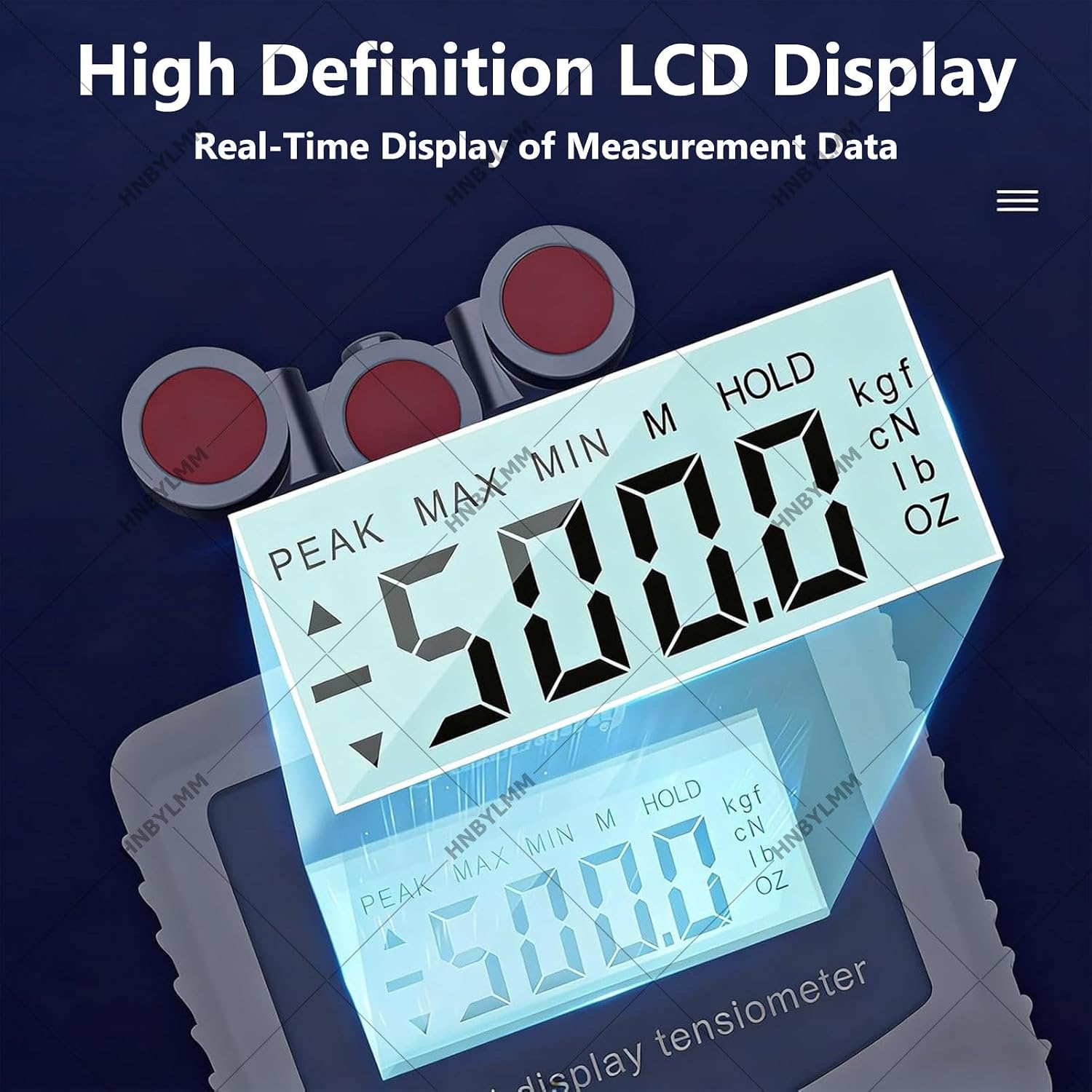

• 【High-Precision Measurement】This handheld yarn tension meter offers 6 measurement units (cN, gf, oz, kgf, N, lb) and a full-scale accuracy of 2.5%. Equipped with an LCD screen, the data is intuitive, clear, and easy to read. The tester provides reliable data that meets strict professional tensile testing standards.

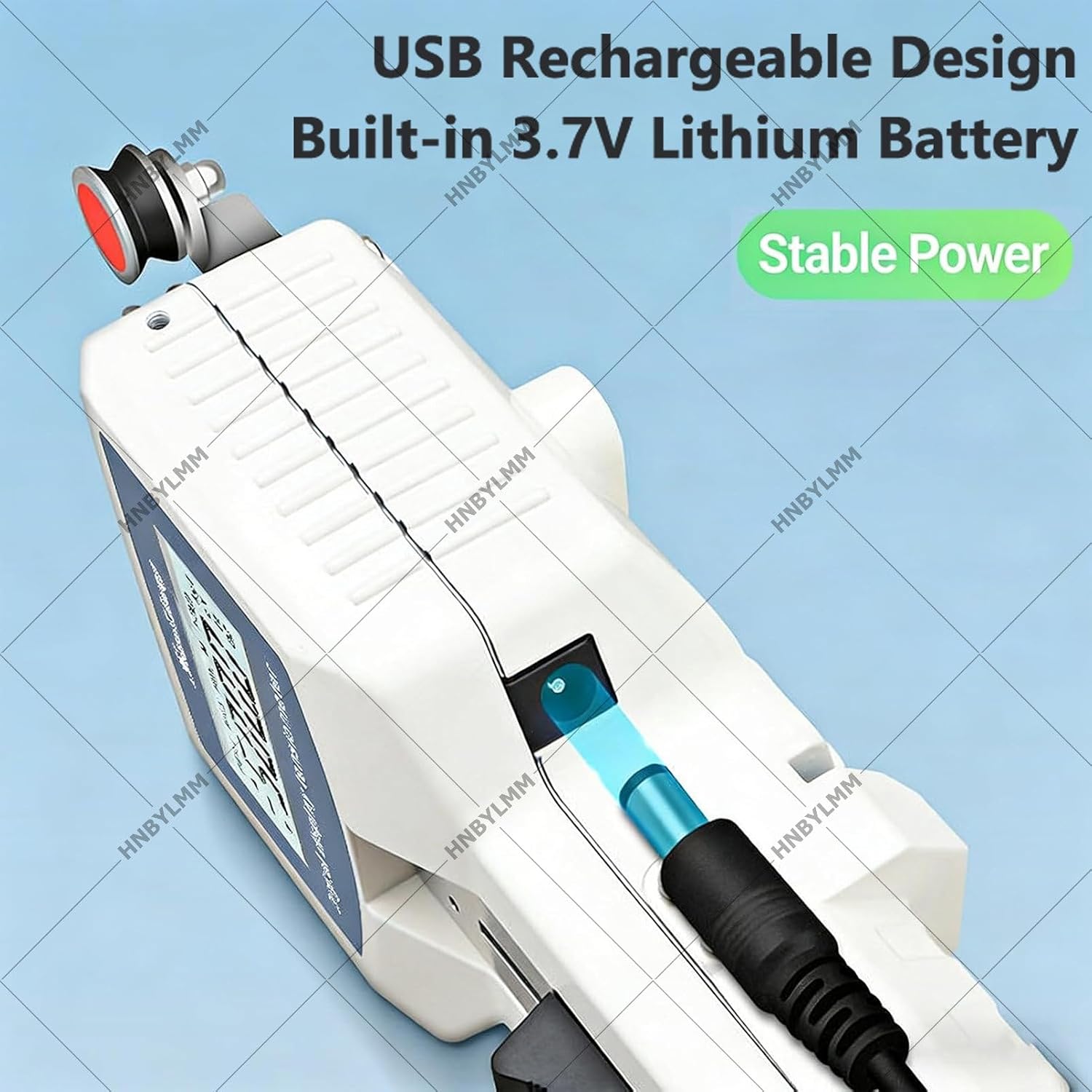

• 【Data Transmission】The digital tension meter features 41 sets of data storage and comes with a USB cable. Stored data can be transferred to a PC via the USB interface for process tracing and quality analysis. Combined with functions like auto-zeroing and multi-unit display, it significantly improves analysis efficiency in commercial environments.
• 【Wide Application】Adopting a precision strain gauge sensing system and proprietary calibration formulas, it automatically corrects errors generated by changes in material diameter and stiffness to ens-ure high-precision measurement. This wire tensile strength tester can precisely measure the tension of 10 different materials, ensuring reliable results for both industrial and laboratory use.
