| Management number | 231080320 | Release Date | 2026/06/18 | List Price | $33.20 | Model Number | 231080320 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

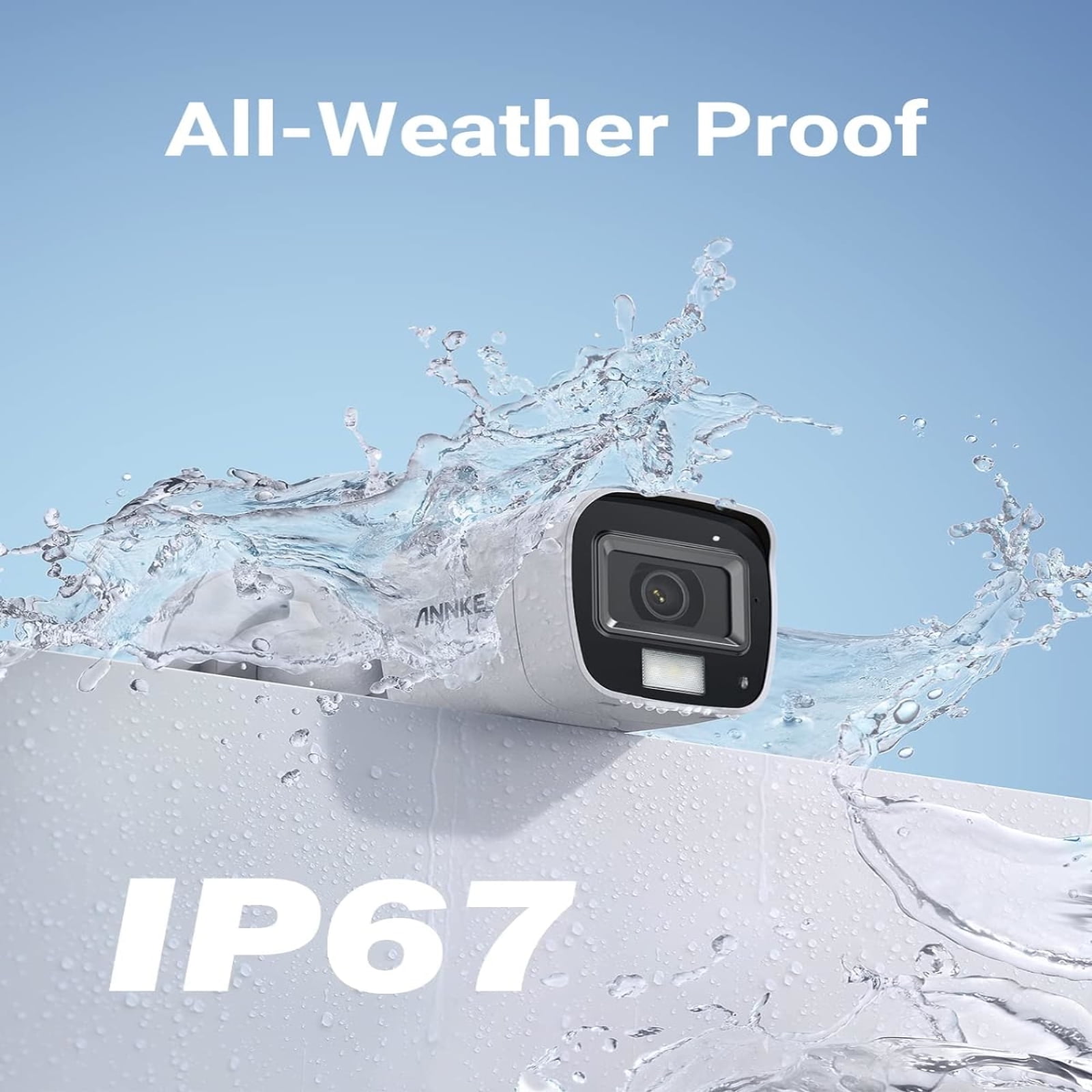

<p>Product Description:</p> <p>Camera Specification:</p> <p>High quality imaging with 2 MP, 1920×1080 resolution</p> <p>3.6 mm fixed focal lens</p> <p>High quality audio with audio over coaxial cable, built-in mic</p> <p>Up to 25 m IR distance for bright night imaging</p> <p>Up to 20 m white light distance for bright night imaging</p> <p>One port for four switchable signals (TVI/AHD/CVI/CVBS)</p> <p>Water and dust resistant (IP67)</p> <p>Image sensor: 2MP CMOS Image sensor</p> <p>Video Resolution: 1920 (H) × 1080 (V)</p> <p>Signal System: PAL/NTSC</p> <p>Frame Rate: """"TVI: 1080P @ 30 fps, 1080P @ 25 fps</p> <p>AHD: 1080P @ 30 fps, 1080P @ 25 fps</p> <p>CVI: 1080P @ 30 fps, 1080P @ 25 fps</p> <p>CVBS: PAL/NTSC""""</p> <p>Lens: 3.6mm</p> <p>Min.Illumination: Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR</p> <p>Angle of ViewHorizontal: FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°</p> <p>Supplement Light type: 1 white Light & 2 EXIR</p> <p>Supplement Light Range: IR : Up to 25 m, white Light : Up to 20 m</p> <p>Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.</p> <p>Wide Dynamic Range: Digital WDR</p> <p>Audio: Built-in mic</p> <p>IR Cut Filter: Yes</p> <p>Video Output: BNC, switchable TVI/AHD/CVI/CVBS</p> <p>Housing: Plastic</p> <p>Color: White</p> <p>Operating Power: DC 12V</p> <p>Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C</p> <p>Indoor/Outdoor: Indoor/Outdoor</p> <p>Weatherproof Rating: IP67</p> <p>Dimension (L x W x H): 138.8 mm × 60.9 mm × 57.9 mm (5.47"""" × 2.4 """" × 2.3"""")</p> <p>Weight: Approx. 155 g (0.34 lb.)</p>
| Has night vision | Y |
|---|---|
| Resolution | FHD (1080P) |
| Field of view | 78 º |
| Features | Waterproof |
| Rec location | Indoor and Outdoor |
| Power type | Corded Electric |
| Brand | ANNKE |
| Camera type | CCTV Surveillance Cameras |
| Lens type | Fixed Lens |
| Number of cameras | 4 |
| Compatibility | ANNKE or third-party DVRs (require 5MP, 6MP, 4K or higher resolution DVRs) |
| OS | iOS, Android |
| Color | White |
| Accessories included | Power Cables |
| Number of megapixels | 2 MP |
| Assembled product height | 3.54 in |
| Assembled product weight | 5.4 lb |
| Inputs & outputs | BNC, switchable TVI/AHD/CVI/CVBS |
| Connector type | HDMI |
| Has written warranty | No |
| Piece count | 4 |
| Retail packaging | Kit |
| Model | AU-KCT1GT0403 |
| Input/output direction | Output |
